73 Guidelines For Multimeter Battery Measurement

This time around, we shall cover How To Measure A Battery With A Multimeter. Obviously, there is a great deal of information on Car Battery Volts on the Internet. The fast rise of social media facilitates our ability to acquire knowledge.

How To Use A Multimeter-related material is also connected to how to test a battery with a multimeter and Cranking Test Battery. As for further searchable items pertaining to Car Battery Volts, they will likewise have anything to do with How To Measure Amps With A Multimeter.

73 Tips to How To Measure A Battery With A Multimeter | How To Test 12V Battery With Multimeter

• The drill battery performs an important task, especially in areas without electricity. However, the cordless drill batteries wear out after some time, and they might need replacement. Damage to the battery can cause the battery’s performance to deteriorate over time. - Source: Internet
• In an overload condition, the analog multimeter will show Full Scale Deflection “FSD” of the needle. It must be avoided to avoid any possible damage. Avoid using low voltage ranges for unknown voltage measurement using analog meters. - Source: Internet
• Why does the meter knob read 20V and not 10V? If you’re looking to measure a voltage less than 20V, you turn to the 20V setting. This will allow you to read from 2.00 to 19.99. - Source: Internet
• However it is not always wise to cut wires unnecessarily. In our example, an obvious place to break the circuit and insert our probes would be at the end of one of the batteries. Most battery holders have a spring to help make a good contact. It is normally possible to separate the batteries and insert a small piece of cardboard to isolate the batteries from each other. Then it is a matter of simply placing a probe on either side of the cardboard. - Source: Internet
• March 3, 2019. Testing your battery is something you may not associate with regular car maintenance like getting an oil change, but the battery is needed for everything from starting your car to powering your car’s computers and devices. Dead batteries are a common reason for roadside assistance calls and making sure your battery is in good condition could prevent the hassle of your car breaking down unexpectedly. You can check your car battery quickly and easily yourself. - Source: Internet
• A multimeter is a testing device that can measure Inductance, Temperature, Frequency, Resistance, Current, Capacitance, and much more. They have both digital multimeter and analog versions. Moreover, additional accessories can be used with a multimeter to obtain properties like Acidity, Alkalinity, Wind Speed, etc. - Source: Internet
• Multimeter Setting The multimeter may look complicated due to its various measurement settings, but the general operation is fairly simple. For testing the electrical output from a vehicle battery, the multimeter dial should be turned to the “20 volts” setting. But before the multimeter can be used, all surface charge from the battery must be removed to allow for an accurate reading. To do this, the headlights should be turned on for about two minutes, then turned off. - Source: Internet
• Testing a car battery with a multimeter is quite easy with the necessary guidance. A multimeter is a tool that we would recommend in every house and it can measure electrical quantities like current, voltage and even resistance. The ideal voltage for a car battery would be around 12.5 volts. - Source: Internet
• If you suspect your battery is failing, stop by your local Advance Auto Parts. Advance offers quick curbside testing without you needing to leave your vehicle. If you need a new battery, a knowledgeable Team Member will help you select the right one for your vehicle and install it for you while you wait*. Advance will even recycle your old battery for you. Learn more about free services here. - Source: Internet
• Most car batteries are located in the hood of the car, near the engine block, though some models of vehicle (and many European cars) have the battery located in the trunk, underneath the floorboard. Once the battery has been located it may have an additional plastic hood on the top that can be removed to access the battery underneath.\ - Source: Internet
• We hope you enjoyed this read on measuring the voltage of the battery using a multimeter. You might find the procedure a bit tricky at first, but it is rather easy once you learn how to read the multimeter. For any queries, do contact us. - Source: Internet
• Voltage measurement is one of the most simple and easy tasks to do with a DMM (digital multimeter) or analog multimeter meter. Voltage measurement is done in order to troubleshoot or analyze a circuit. it is one of the most fundamental yet very necessary tasks in electrical maintenance. - Source: Internet
• The difference of electrical potential between two points is known as voltage or potential difference. It is measured in volts. Voltage can be either alternating AC or direct DC. The AC voltage swaps polarity continuously, therefore; it does not have specific polarity. While the DC voltage remains constant having fixed polarity. - Source: Internet
• Note: It is safe to work and touch a DC circuit at low voltage. However, it is best not to touch the tip of the leads during reading as it may inflict errors in the measurement. Do not touch the tips of the leads together. - Source: Internet
• Also, care must be ensured that the battery should be sufficiently rested before measuring the voltage. We recommend measuring after leaving the car unused for a few hours. If you find the multimeter readings a bit too complex to make sense of, it is nothing to worry about. In this article, we will be providing you with everything you need to know while testing a battery with a multimeter. - Source: Internet
• If the terminals are heavily corroded the battery may need to be removed and cleaned before it can be properly tested – Corrosion can give off false or otherwise imprecise readings. Remove the battery according to manufacturer’s instructions and clean the corroded bits with terminal cleaner and a terminal-cleaning brush. If it comes to this point, taking it into a shop for this step might be your safest option. - Source: Internet
• A useful feature of multimeters is their ability to measure the resistance in a circuit. Although the exact resistance in a circuit may not be useful to you, often knowing the relative resistance is. Example: Knowing the exact resistance of your clothes iron isn’t important. However knowing that there is some resistance (that of the heating element) tells you that it should work. No resistance indicates a broken connection which needs to be fixed. - Source: Internet
• The most commonly used multimeter is the digital one, which is easy to use, and you can take readings without any problem. It is good to test the battery at least once a month because it will help you know when the battery is weakening. Therefore, in this fantastic piece of writing, we will look at the process of testing a battery with a multimeter. - Source: Internet

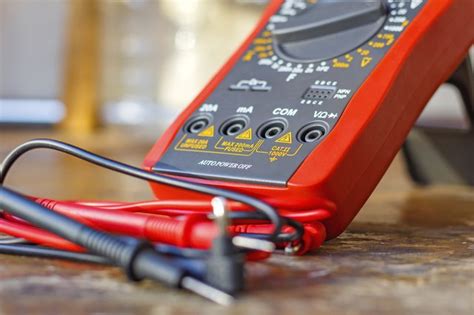

• Your probe wires should be colored red and black, with corresponding red & black ports on the multimeter base for them to fit into. If multiple ports exist your black probe should go into the slot labeled “COM”, while your red connector should go into a port labeled “volts/homs/milliamps”. If a port labeled “10A” is present do not use it for testing your car battery; this could damage your multimeter. - Source: Internet
• Exercise 1: To measure the voltage at a wall outlet, insert one probe in one hole and the other probe in the other hole. It doesn’t matter which probe goes where. Try it with your meter: - Source: Internet
• Overload condition occurs when you have selected a voltage range lower than the voltage to be measured. The meter cannot measure the voltage as it exceeds its measurement range. Overload conditions are not harmful or damaging for the multimeter. - Source: Internet
• There are usually 3 or 4 ports on every multimeter. And their markings will tell you what they are for. Typical markings are: - Source: Internet
• If you discover the voltage displayed on the multimeter is precisely the same as the listed rating or lower, you should be ready to replace your battery. It shows that the battery is on the verge of dying. However, you can take some measures to rejuvenate the battery. A rejuvenation will buy you time, but it will not factory reset the battery. - Source: Internet
• When your car doesn’t start, often a low or dead battery is the culprit. Unfortunately, most vehicle owners do not check their battery until it fails. As preventative maintenance, the suggested best practice is to conduct a car battery voltage test regularly – at least twice per year – using a multimeter. - Source: Internet
• If your car hasn’t been starting you can also perform a crank test: Have a friend or family member crank the car for you while the terminals are attached. If your reading dips below 10.0 volts (or more than 2 volts less than your initial reading) this is a sign that your battery may not be producing enough current to handle the starter motor. - Source: Internet
• Example: Here we have two 1.5 volt batteries connected in series to give 3 volts across the resistance (a light bulb). By placing the probes as shown we can measure the voltage (3 volts) across the light bulb. - Source: Internet
• #2 - We already know that the voltage of the battery is 9V maximum, so we will point the dial to 20V (as shown) i.e. the higher range - Source: Internet
• Since we’re expecting 220 Ω, the 200 range is a bit too low. So choose the 2000 range. Then place a probe on each side of the resistor to measure. - Source: Internet
• In the article on The Dreaded Ohms Law, we learned that the current flowing through a series circuit is the same throughout the whole of the circuit. Therefore if we can measure the current flowing through any part of the circuit, we are effectively measuring the current flowing through the resistance. That is, the current flowing through the resistance is the same as the current flowing through the wire, which is the same as that flowing through the batteries (to use our example). - Source: Internet
• We can then see how much voltage the LED is using. This is what is referred to as the voltage drop across the LED. If that doesn’t make sense now, fear not. It will as you explore the world of electronics more. The important thing to take away is that different parts of a circuit can be measured to analyze the circuit as a whole. - Source: Internet
• The first digit on many multimeters is only able to display a ‘1’ so the ranges are limited to 19.99 instead of 99.99. Hence the 20V max range instead of 99V max range. - Source: Internet
• To measure the current in a circuit we need to measure the current flowing through the resistance. We have seen that we can’t simply place the probes across the resistance, as this gives us the voltage not the current. So what is the secret? - Source: Internet
• Clearly, the choice of resistor values will ultimately depend on the FSD of the galvanometer used and the voltage levels that need to be measured. Either way a simple multi-range analogue DC voltmeter can be constructed by connecting higher series multiplier resistors and a switch. Most digital multimeters these days are auto-ranging. - Source: Internet

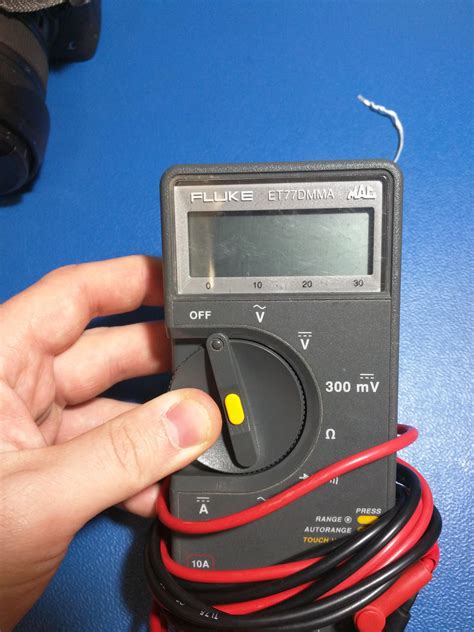

• To use a multimeter, two “probe” wires are inserted into the base unit, then attached to something with an electrical charge (like your battery!); the dial usually tells the multimeter what sort of measurements to take. The dial may have a multitude of settings but for testing your car battery we’ll only be looking for one: DC (or “direct current”), set to 20 volts. The DC side of the multimeter dial will be designated by a “V–” symbol (there will be three dots underneath the straight line as well); “V~~” (with tildes) is AC (alternating current) and is the wrong setting for this test. - Source: Internet
• #4 - The display should read a value that is just short of 9V. Since this battery has been in use for some time, it shows 8.74V, which is still enough for it to supply current to the load. - Source: Internet
• If your battery is consistently charged at less than 80%, acid stratification can occur. This means that the electrolyte collects at the bottom of the battery, causing the upper half to be acid-poor. Acid stratification reduces the battery’s performance and may cause it to fail. - Source: Internet
• Once you have determined if you will be measuring AC or DC, you need to select this on your multimeter. Refer to your meter instructions. Most meters will not be damaged by selecting AC instead of DC, or DC instead of AC. However the meter won’t read correctly, if at all. - Source: Internet
• For example, if we connect a voltmeter across the terminals of a fully-charged automobile battery, it will indicate 12.6 volts. That is there is a difference in potential of 12.6 volts between the batteries positive and negative terminals. Thus voltage, V is always measured across or in parallel with a circuit component. - Source: Internet
• A multimeter is an electronic measuring instrument that is used to gauge volts, amps, and resistance from an electrical source. The most common automotive application for a multimeter is to test the strength of a car battery. When used properly, it will provide voltage information to a high degree of accuracy on a digital readout. Understanding the data provided is vital in determining whether the battery is strong and healthy or should be replaced. - Source: Internet
• Attach the multimeter probes to the positive and the negative battery terminals. When doing this, you need to be keen on the signs on the terminals. The multimeter’s red probe must be connected to the positive terminal, while the black probe must be connected to the negative terminal. - Source: Internet
• One of the main areas in battery maintenance is battery testing. It is the best way to know the battery’s condition and diagnose significant causes of some battery failures. One of the devices that we use to test the battery is a multimeter. - Source: Internet
• Batteries play a crucial part in our day-to-day activities, and the entire globe needs them. Therefore, it is always good to maintain the battery that you have to earn many benefits. The process of battery maintenance is simple, and everyone can manage it. - Source: Internet
• What happens if you select a voltage setting that is too low for the voltage you’re trying to measure? Nothing bad. The meter will simply display a 1. This is the meter trying to tell you that it is overloaded or out-of-range. Whatever you’re trying to read is too much for that particular setting. Try changing the multimeter knob to a the next highest setting. - Source: Internet
• After attaching the multimeter probes, monitor the multimeter’s led display. The voltage indicator will show the battery’s voltage at that time. A fully charged battery must indicate a slightly higher voltage than the voltage listed on the battery. For instance, a 12 volts battery will indicate about 12.6 volts when fully charged. - Source: Internet
• 3 – Multimeters come with a red (positive) and black (negative) lead. Some multimeters used for other testing may have dragon clips or alligator clips. For testing a car battery, the leads are best if they are of the point end probe type. - Source: Internet
• So how do we do all this? We could cut the wire between the battery and the light bulb. Then connect one probe to each of the cut ends, with the multimeter selected to measure DC current. This would work as we are measuring the current flowing through the wire (and the multimeter). Because it is a series circuit, we are also measuring the current flowing through the light bulb and the batteries. - Source: Internet
• A multimeter is an electronic device that can measure the current, voltage, and resistance. The multimeter is also known as voltage-ohm-milliammeter abbreviated as VOM. Two types of multimeters exist the analog multimeter that uses a moving pointer to display readings and a digital multimeter with an LED display that shows accurate readings. - Source: Internet
• Most multimeters have the facility to measure small amounts of DC current. Some meters also allow the measurement of AC current. Although the measurement of DC current is explained here, the procedure for AC current follows similar principles. - Source: Internet
• Usually, a car battery comes with a warranty period of 4 years. However, not all of them make it past the time period. Anything above 4 should be considered a bonus. - Source: Internet
• If the meter pointer only moves a tiny bit, then select a smaller range. Continue to select a smaller range until the pointer is midway or higher. If the readout reads 0.01 or a similar very low reading, select a lower range until a more meaningful reading is displayed. If the pointer goes off the scale (all the way over the right-hand side) then you need to quickly remove the probes, select a higher range, then measure again If the range selected is too high, most meters will display OL or -1 or similar indicating overload or out of range. - Source: Internet
• If the battery is not working properly, then it might be time to check the Alternator. The alternator charges the battery. First of all, turn on all the headlights, and other electrical appliances in the car. If the multimeter reading is less than 13.15, then the alternator is faulty and ought to be replaced. - Source: Internet
• Also, see what happens when you change the range value. If the multimeter reads 1, it’s overloaded. You will need to try a higher mode such as 200. If the multimeter reads 0.00 or nearly zero, then you’ll have to lower the range. - Source: Internet
• If you’re looking for small current values, plug the red probe into the port marked mA (milliamperes). For larger currents, plug it into the 10A port. (On some multimeters, you’ll see other values, like 20A). - Source: Internet
• If you’re measuring DC voltage (such as a battery or a sensor hooked up to an Arduino) you want to set the knob where the V has a straight line. AC voltage (like what comes out of the wall) can be dangerous, so we rarely need to use the AC voltage setting (the V with a wavy line next to it). If you’re messing with AC, we recommend you get a non-contact tester rather than use a digital multimeter. - Source: Internet
• While the engine is running, the voltmeter should measure between 13.6 and 14.7 volts. For a rested battery, this should be around 12.6 volts. - Source: Internet
• At 26.6 degrees Celsius a reading for a battery with a good charge is about 12.5 volts or higher, 12.3 volts means about a 75% charge, 11.8 volts or lower means 25% or less. - Source: Internet
• The LCD display shows you the value that you are measuring. The multimeter dial allows you to select what you want to measure. And the ports are where you connect your test probes. - Source: Internet
• A 9V battery isn’t always exactly 9V. When it’s new, it can be a bit higher. When it’s old and used, it can be lower. So let’s measure the voltage of one. - Source: Internet
• 4 – The multimeter setting to test a car battery is 20 DC Volts. Set the dial on the meter to 20 Volts DC. This will allow accurate measurement in a range of 0-20 DC Volts, more than enough to capture the batteries capacity within that range. - Source: Internet
• Once the battery hits 3.0 volts, the cutoff circuitry disconnects the battery. You will no longer charge or discharge the battery. Therefore, you can check the battery with a voltmeter or multimeter to know if it’s dead or not. It is wise to replace the battery once you notice that the voltage is lower than the one listed on the battery by the manufacturer. - Source: Internet
• A car battery with a full charge should have at least 12.6 volts and measure at 13.7-14.7 when the engine is running. - Source: Internet
• #1 - In Part 1, we will measure the voltage of the battery. To do this, use the switch dial to select DC voltage measurement. Since battery generates DC power, we will measure DC voltage. - Source: Internet
• Prepare the Battery The first step is to locate the vehicle battery (consult the owner’s manual) and determine if there is any dirt or corrosion at the positive and negative terminals. The positive terminal usually wears a red cover and a “plus” sign, while the negative terminal has a black cover and a “minus” sign. Since corrosive buildup can keep the multimeter from taking accurate voltage readings, it should be scrubbed off using fine-grit sandpaper. Gloves should be worn to prevent skin exposure to harmful chemicals and battery acid. Once the terminals are clean, they will serve as the connection points for the multimeter’s probes. - Source: Internet
• Example 2: You want to measure the voltage of your car battery. It should be 12 volts. Select the 15, 20, 25, 30 or 50 volt range on DC, (depending on your meter’s ranges). - Source: Internet
• We can test different parts of the circuit as well. This practice is called nodal analysis, and it is a basic building block in circuit analysis. By measuring the voltage across the circuit we can see how much voltage each component requires. Let’s measure the whole circuit first. Measuring from where the voltage is going in to the resistor and then where ground is on the LED, we should see the full voltage of the circuit, expected to be around 5V. - Source: Internet
• Test probes are available in two designs; the pointed needle tip probes and the alligator probes. The lead tip probes are the standard probes that need to be held in place during measurement. The alligator probes have a spring-loaded clip that is clipped to the circuit and does not require you to hold them with your hands. - Source: Internet
• When measuring DC, you need to put the red probe to the positive(+), and the black wire to the negative(-) of the voltage being measured. If you mix this up and reverse the wires, then the meter will read backwards. That is, on analogue meters, the pointer will quickly move off the left-hand side of the scale. If this happens, no permanent damage normally occurs, simply reverse the way you have the probes. On digital meters, all that happens is that a “-” sign appears in front of the numbers indicating a negative voltage. - Source: Internet
• Start by getting your multimeter ready to measure voltage: Connect the black probe to the GND port and the red probe to the port marked with a V (for Voltage). On the dial select a V range for voltage measurement. The number you see on the dial is the highest value you can measure with that range. - Source: Internet
• A common use for a multimeter is to detect which lead from a battery or power supply is positive and which is negative. When you don’t know which is which, hold one probe on one of the leads to be tested, and then momentarily touch the other lead with the other probe. If, on an analogue meter, the pointer moves off to the left, then swap the probes over. When the meter reads correctly, the red probe is connected to the positive wire (or positive battery terminal). On a digital meter, if the “-” sign appears, then reverse the probes for the red lead to be connected to the positive. - Source: Internet
• Note: Mind the polarity while using an analog multimeter to measure DC voltage. It will not show any deflection when connected with opposite polarity. It may in some case cause damage to the meter. - Source: Internet
• Select 15, 20 or 50 volts DC on your meter. Place the red positive probe on the battery positive terminal. Place the black negative probe on the battery negative terminal. A good battery should read between twelve and fourteen (12-14) volts. - Source: Internet
• Once the terminals have been exposed take caution, as the battery is very much “live” and can cause shock and injury if touched. Of particular note: Never let an object bridge the two terminals, as this can lead to a dead battery at best and a literal explosion at worst. Work with care and attentiveness, and make sure to keep metal tools and jewelry away from the battery terminals. - Source: Internet
• Let’s assume that we wish to use our 100uA, 500Ω galvanometer above to measure circuit voltages upto 1.0 volt. Clearly we cannot connect the meter directly to measure 1 volt because as we have seen previously, the maximum voltage it can measure is 50 millivolts (50mV). But by using Ohm’s Law we can calculate the value of series resistor, R S required which will produce a full-scale meter movement when used to measure a potential difference of one volt. - Source: Internet
